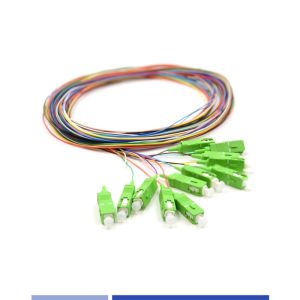

Singlemode OS2 SC APC Pigtails 12 Fibers LSZH 3m For FTTH Solutions

Ask Lasest Price
Brand Name :	GoreLink
Model Number :	G328-1412-3
Payment Terms :	T/T,Western Union,Paypal
Delivery Time :	1-3 Working days

Add to Cart

Product Details
Company Profile

Singlemode OS2 SC APC Pigtails 12 Fibers LSZH 3m For FTTH Solutions

What is the application of Fiber Optic Pigtails?

Fiber optic pigtails are typically used to connect optical fibers to devices like optical splitters, patch panels, or directly into networking equipment. The 12-strand configuration is ideal for environments that require large numbers of fiber connections, such as data centers, telecommunications networks, or enterprise networks. Generally, there are single ,6 strand and 12 strands for your choice. a 12-strand fiber optic pigtail offers high-capacity data transmission through 12 individual fiber channels, typically in a compact, pre-terminated form for easy installation and reliable performance.

Fiber Optic Pigtail, 12 fibers SC/APC Singlemode OS2 9/125, LSZH, 3m

Gorelink Singlemode 9/125um OS2 Fiber Optic Pigtails is ideal for fusion splicing to support high speed network connections.These pigtail provide the optical performance, sturdiness, and repeatability required for modern network applications by combining quality zirconia ferrules with tough composite hardware. They are quality tested to ensure they meet or exceed industry standards while adhering to only the most stringent performance specifications.It provides a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.

Applications:

Telecommunications: For connecting network equipment to fiber optic systems.
Data Centers: For high-density fiber optic cabling, ensuring fast and reliable data transfer.
Fiber-to-the-Home (FTTH): Used in broadband networks to deliver internet, television, and voice services.

General Specification

Fiber Mode	Singlemode OS2 9/125um
Fiber Count	12 Fibers
Strength Member	Aramid Yarn
Cable Diameter	0.9mm±0.05mm
Cable Color	12 colors
Connector	SC
Polishing Way	APC
Connector Color	Green (SC,LC) Black (ST,FC)
Cable Jacket	LSZH
Cable length	As per the order request
OPTICAL PERFORMANCE
Parameter	Singlemode 9/125um
Insertion Loss(IL)	≤0.3 dB
Return Loss(RL)	≥50dB
Attenuation(dB/KM)	≤0.35 dB @1310nm
Wavelength	1310/1550nm
Operating Temperature	-10 to + 70°C
Storage Temperature	-10 to + 80°C

Ordering Information

PART NO.	DESCRIPTION
G328-1412-1	Fiber Optic Pigtail 12 Fibers SC/APC Singlemode 9/125um, 0.9mm LSZH jacket,1m
G328-1412-2	Fiber Optic Pigtail 12 Fibers SC/APC Singlemode 9/125um, 0.9mm LSZH jacket,2m
G328-1412-3	Fiber Optic Pigtail 12 Fibers SC/APC Singlemode 9/125um, 0.9mm LSZH jacket,3m
* Customized

If you need any further questions, please feel free to contact us by sales@gorelink.com
