12 Fiber Singlemode 9/125um Aerial Fiber Drop Cable PE Jacketed GYXTC8S

Ask Lasest Price
Brand Name :	GoreLink
Delivery Time :	As per the order quantity
Payment Terms :	T/T,Paypal,Western Union,
Model Number :	GL-GYXTC8S-812

Add to Cart

Product Details
Company Profile

12 Fiber Singlemode 9/125um Aerial Fiber Drop Cable PE Jacketed GYXTC8S

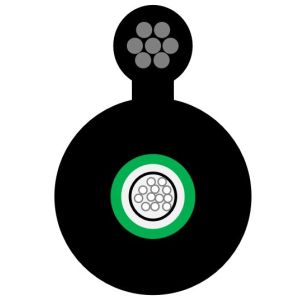

Outdoor Aerial Fiber Optic Cable,12 Fiber, Singlemode 9/125, Armored, with steel wire messenger,PE,Black,GYXTC8S

Gorelink Fiber Optic Arerial Cables are made for outdoor use along utility poles for cable television, telecom or other outside plant campus backbone applications. With the sturdy 1/4" galvanized messenger wire pre-attached to the aerial fiber optic cable, the cable is self-supported, virtually eliminating the need for the aerial fiber cable to be lashed to an external wire. This figure-eight design reduces the installation time and cost by approximately 50% when compared to separate installation of a messenger wire and the lashing of the cable to the messenger.

Application

FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks

General Specification

Fiber Mode	Singlemode G652D
Fiber Count	24 Core
Cable structure	Uni-Central Loose tube
Cable Armor	Corrugated Steel Tape Armor
Strength Messenger	7x 1.0mm Steel wire
Cable Diameter	9.8-10.5mm
Outer Jacket	PE
Cable Color	Black
Cable length	As per the order request
OPTICAL PERFORMANCE
Attenuation(dB/km)	≤0.36 dB @1310nm
Core diameter(um)	9±2.5
Cladding diameter(um)	125±1.0
Wavelength	1310nm / 1550nm

FIBER cables-indoor outdoor cables.png

Download Datasheet

Outdoor Aerial Fiber Optic Cable- GYXTC8S-Singlemode

Ordering Information

PART NO.	DESCRIPTION
GL-GYXTC8S-802	Outdoor Aerial Fiber Optic Cable,2 Fiber,Singlemode G652D,PE,Black,GYXTC8S
GL-GYXTC8S-806	Outdoor Aerial Fiber Optic Cable,6 Fiber,Singlemode G652D,PE,Black,GYXTC8S
GL-GYXTC8S-808	Outdoor Aerial Fiber Optic Cable, 8 Fiber,Singlemode G652D,PE,Black,GYXTC8S
GL-GYXTC8S-812	Outdoor Aerial Fiber Optic Cable,12 Fiber,Singlemode G652D,PE,Black,GYXTC8S
* Customized
